SPECIFICATIONS

Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller

Brand Name: PowMr

Certification: CE,RoHS

High-concerned chemical: None

Is Smart Device: Yes

Model Number: POW-PSTAR

Origin: Mainland China

is_customized: Yes

Important:

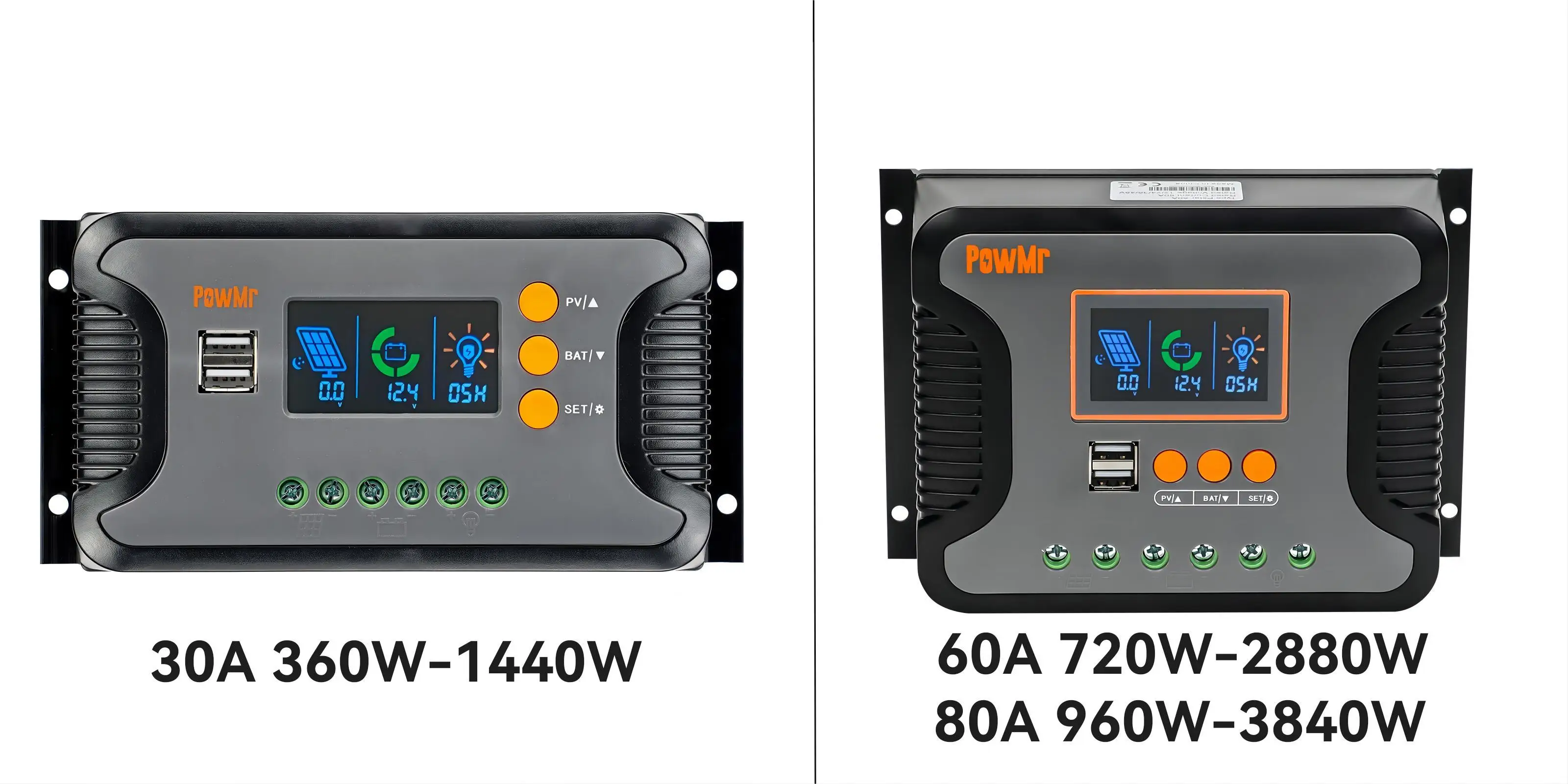

30A Controller outlooking is different with 60A 80A Controller.

Warning: Do not charge Li-iron batteries if the battery temperature is below 0°C.

Features:

UPGRADED SOLAR CHARGE CONTROLLER:

Auto detect 12V 24V 36V 48V system, Max PV input voltage 100 volts, Max. Input Power: 360W-1440W(30A),720W-2880W(60A),960W-3840W(80A);Compatible with lithium-ion and lead-acid battery, support user-defined batteries, Built-in Dual USB output 5V/2.5A (max), charging for your mobile phone, tablet, PC.

3-STAGE PWM Technology:

The controller is equipped with advanced smart PWM technology with high charging efficiency, through three stages charge modes(Bulk, boost, float), fast, efficientand safe battery charge, effectively extend the battery life; combination of solar light control and time control, freely adjust the load enable duration.

14 TYPE BATTERY COMPATIBILITY :

Compatible with various 12v 24V 36V or 48v batteries, such as SEL, USE, FLD, GEL, LiFePO4 and ternary lithium battery; with clear and special icons for various Lithium batteries on the LCD screen, easy select battery type; support user-defined batteries and calibrate battery voltage.

EASY-READ BACKLIT DISPLAY:

Built-in Backlight LCD Screen, real-time monitor and control charging: charging current, generated energy, temperature, battery voltage, and error codes, fast and easy set and commiss parameter; No matter how users switch display screen, it will automatically return to default display screen after no button is pressed for 100 seconds.

MULTIPLE PROTECTIONS:

Equipped with against overheating, automatically stops charging, against output short circuit, against over discharging, against reverse polarity connection and Limit the maximum charging current protection, ensure safe to use; natural convection, cool air heat dissipation, complete silence.
